Fermentation plant Aschaffenburg

GBAB had already been operating a composting plant with static triangular heaps in Aschaffenburg since 1992. In 2008, it began planning a fermentation plant at the same location, which was to incorporate the existing buildings and equipment as well as the infrastructure and retain composting. In addition, however, the energy potential of the biowaste was to be utilised.

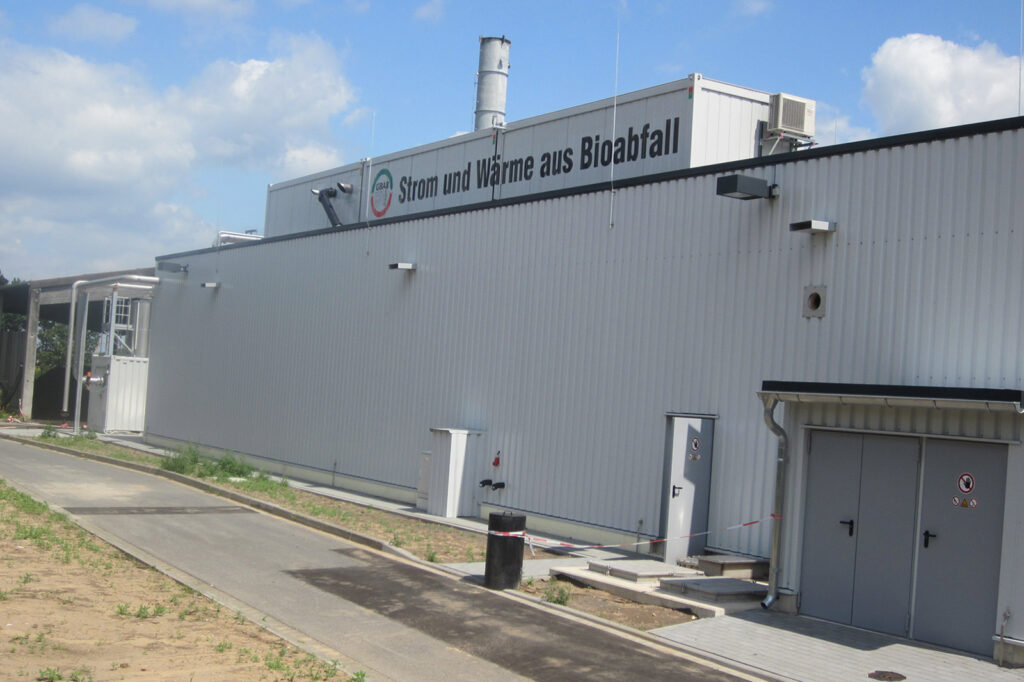

Within the framework of a tender for a fermentation process, the decision was made in favour of thermophilic dry fermentation in a discontinuous batch process. At the time, this was particularly promoted by the EEG*. The plant we planned consists of five identical dry fermenters that can be accessed by wheel loaders and a large percolate fermenter, supplemented by a heated and ventilated delivery box and a closed storage area for aerobisation of the fermentation residues. These can be transported from there to the external composting plant and processed into compost. The biogas produced during fermentation is converted into electricity and heat in two on-site combined heat and power plants.

Project data

• Total capacity of up to 15,000 Mg/a

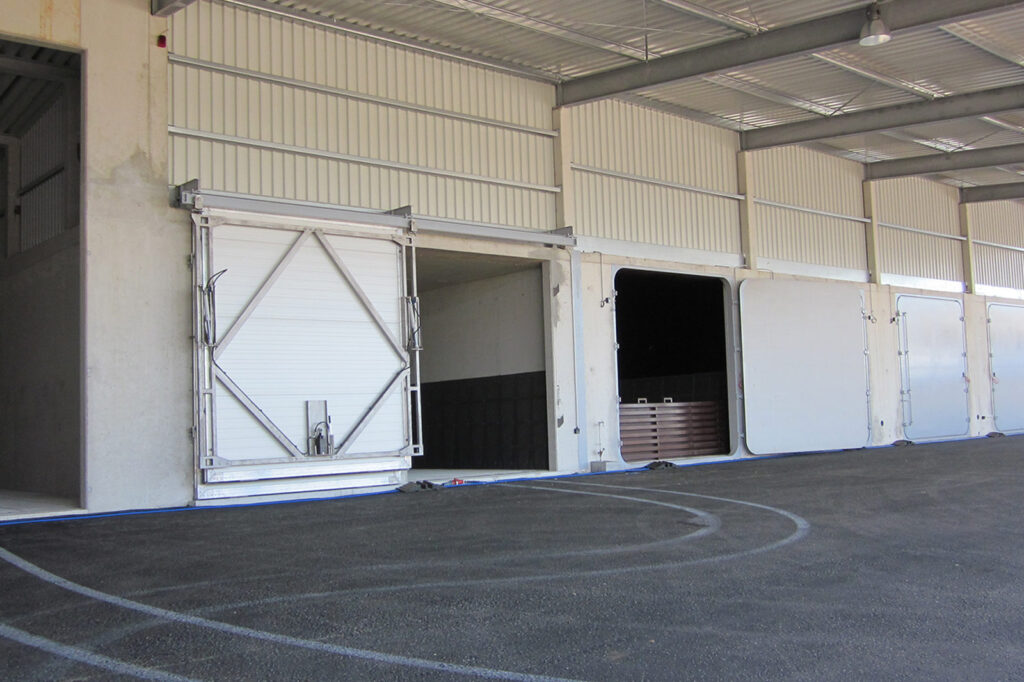

• 5 tunnel fermenters with large percolate storage tank
• Closed, ventilated and heated delivery box
• Closed and ventilated storage for aerobisation of the fermentation residues

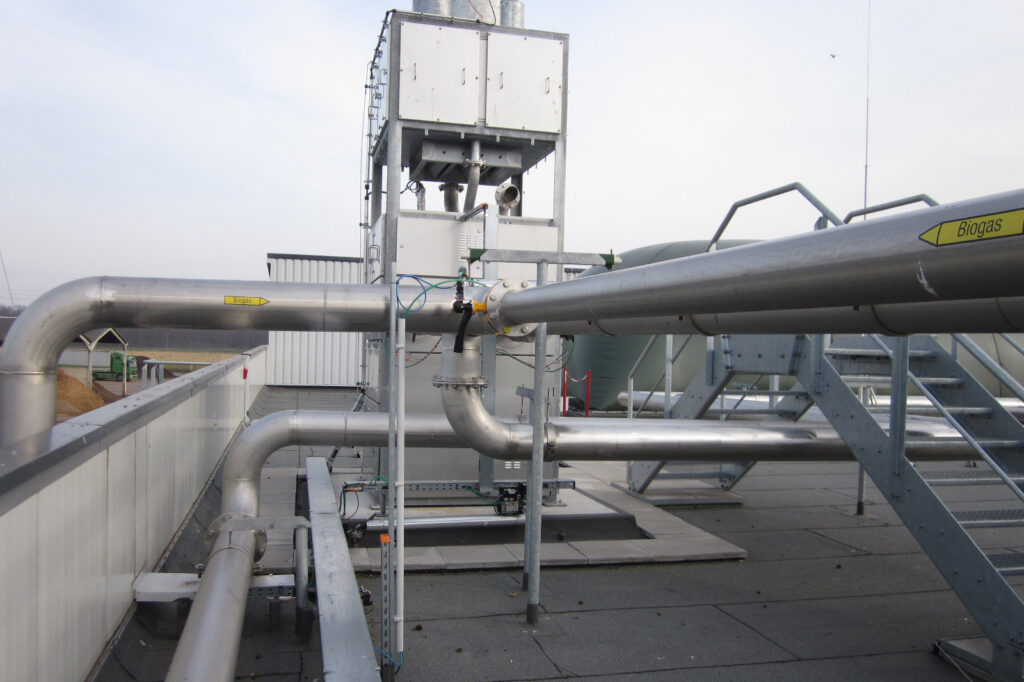

• Biogas processing

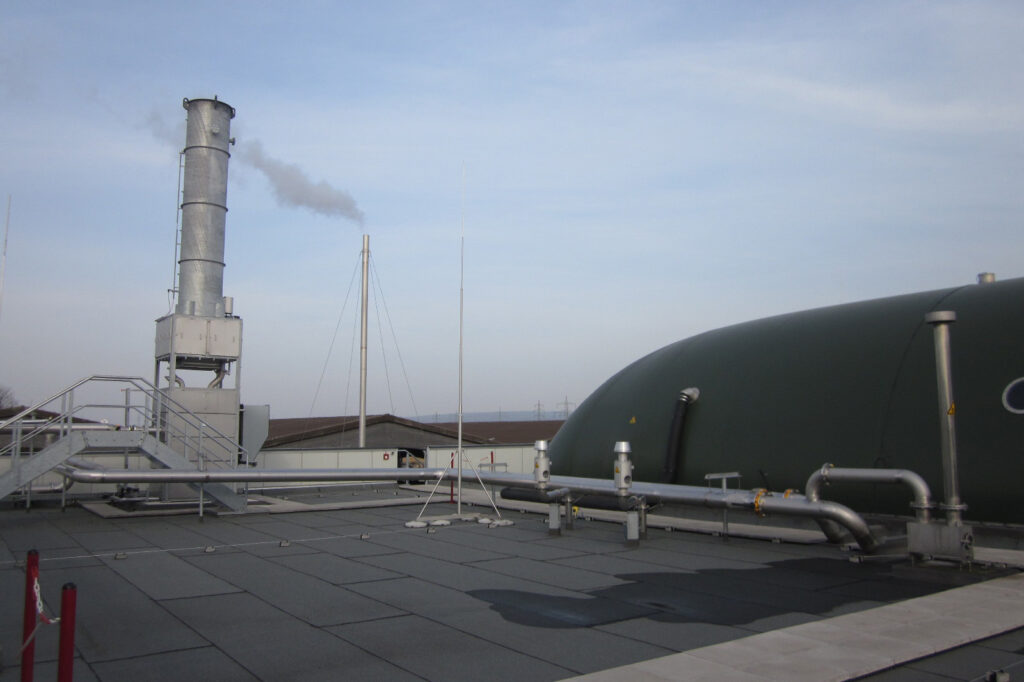

• Biogas utilisation in two on-site combined heat and power plants
• Gas storage
• Covered forecourt

Services

1. Feasibility study
2. Approval planning
3. Implementation planning
4. Tender
5. Participation in the awarding of construction and process engineering contracts
6. Coordination of the experts for building ground, noise, odour and fire protection
7. Local construction supervision
8. Acceptance monitoring

*Renewable Energies Act
